Features


CNR Series
These Chip Type 3-terminal capacitors have improved noise reduction effect for high freqency band. Lowers residual inductance (ESL) by making grand electrode width wider than usual. They are effective in protecting the DC power line from EMI due to supporting large current up to 2A. CNR series are 3-terminal structures which technologies of multilayer chip type ceramic capacitors have been applied, and these support surface mount technlogies.

Applications


Noise reduction for DC power line (computer, TV, digital equipments, etc.)

Equivalent circuit


Dimensions


  • Dimensions
  • Unit: ㎜
    Type L W T G S
    CNR10 1.6±0.1 0.8±0.1 0.6±0.1 0.8
    +0.2/-0.1
    0.4±0.1

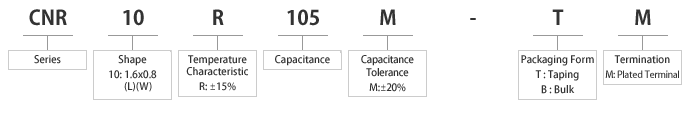

Part Number System
